Jetway JNF796M-H310 (Intel Coffee Lake H310) [2x LAN, 2x RS232]

PRODUCT IS CURRENTLY NOT AVAILABLE !

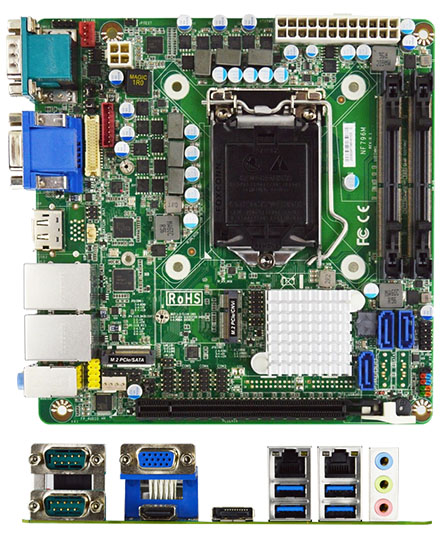

Jetway JNF796M-H310 (Intel Coffee Lake H310) [2x LAN, 2x RS232]
  • Intel Coffee Lake !
  • Mini ITX !
  • 8th / 9th Gen. Intel Core !

  • Intel® 8th/9th LGA1151 Socket Processor (Max. 65W TDP)
  • 2 * DDR4 2400/2666MHz SO-DIMM up to 64GB
  • 2 * 10/100/1000 Base-TX Ethernet Ports
  • 1 * HDMI, 1 * DP, 1 * VGA, 1 * 24-bits Dual CH LVDS support Dual Displays
  • 6 * COM (COM1/2 support RS232/422/485), 4 * USB3.1 Gen.1, 2 * USB2.0
  • 1 * PCIe x16 slot, 1 * M.2 M-key 2242/2280 (SATA/PCIex4) support NVMe, 1* M.2
  • E-key 2230 (PCIex1/USB2.0) support CNVi
  • 3 * SATAIII (6Gb/s)
  • Support onboard TPM 2.0 (option)
[more]

Share

RAM :

SSD (M.2 NVME):

Build/Install:

  • Intel® 8th/9th LGA1151 Socket Processor (Max. 65W TDP)
  • 2 * DDR4 2400/2666MHz SO-DIMM up to 64GB
  • 2 * 10/100/1000 Base-TX Ethernet Ports
  • 1 * HDMI, 1 * DP, 1 * VGA, 1 * 24-bits Dual CH LVDS support Dual Displays
  • 6 * COM (COM1/2 support RS232/422/485), 4 * USB3.1 Gen.1, 2 * USB2.0
  • 1 * PCIe x16 slot, 1 * M.2 M-key 2242/2280 (SATA/PCIex4) support NVMe, 1* M.2
  • E-key 2230 (PCIex1/USB2.0) support CNVi
  • 3 * SATAIII (6Gb/s)
  • Support onboard TPM 2.0 (option)


The JETWAY JNF796M-H310 is Mini-ITX form factor board adopts the Intel® 8th/9th generation Core i7/i5/i3, Pentium and Celeron Processor. The board supports two SO-DIMM DDR4 2400/2666MHz memory, up to 64GB. Featuring the integrated Intel® Gigabit Ethernet controller, the JNF796M-H310 offers two 10/100/1000Base-TX Ethernet devices for network transmission. Three SATAIII (6Gb/s) interface and one M.2 M-key 2242/2280 (SATA/PCIex4) support NVMe offer storage devices. One M.2 E-key 2230 (PCIex1/USB2.0) support CNVi, four USB3.1 Gen.1 ports, two USB2.0 ports and six COM port provide versatile expansion. The PCIex16 slot can support Jetway riser card for different expansion. The JNF796M-H310 offers one HDMI1.4 port, one DP1.4 port, one VGA port and one 24-bits Dual CH LVDS which can support 2 independent displays. Because of the above features, JNF796M-H310 is suitable for Digital Signage, Industrial PCs, Factory Automation, Public Sector, Digital Security and Surveillance applications.


 Model
 Model – JNF796M-H310
 Form Factor
 Form Factor – Mini-ITX (6.7-in * 6.7-in, 170 * 170mm)
 Processor System
 Processor/CPU – Intel® 8th/9th LGA 1151 Socket Core i7/i5/i3/Pentium/Celeron Processor (Max. 65W TDP)
– Intel H310 Express chipset
– AMI 128Mb Flash ROM BIOS
 Memory
 Memory – 2* Dual CH DDR4 2400/2666MHz SDRAM SO-DIMM up to 64GB
 Expansion Slot
 Expansion – 1* M.2 E-key 2230 (PCIex1/USB2.0) support CNVi
– 1* PCIex16 slot
 Storage
 Storage – 3* SATAIII
– 1* M.2 M-key 2242/2280 (SATA/PCIex4) support NVMe
 Graphics
 Graphics – Intel® HD Graphics, shared memory
– 1* VGA (Max Resolution: 1920×1200@60Hz)
– 1* LVDS (Max Resolution: 1920×1200@60Hz)
– 1* HDMI 1.4 (Max Resolution: 4096×2160@30Hz)
– 1* DP (Max Resolution: 4096×2304@60Hz)
– Support Dual Displays
 Ethernet
 Ethernet – 1 * Intel i219LM GbE
– 1 * Intel i211AT GbE
 Audio
 Audio – 6 channel HD audio: Realtek ALC662VD
 I/O Port
 Rear I/O – 1* VGA
– 1* HDMI
– 1* DP
– 2* RJ45 Ethernet
– 4* USB 3.1 (Gen. 1)
– Line-in, Line-out, MIC
– 2* COM (COM 1/2 support RS232/422/485)
 Internal I/O – 2* USB 2.0
– 1* PS/2
– 1* LVDS / Inverter
– 4* COM
– 3* SATAIII
– 1* M.2 E-key 2230 (PCIex1/USB2.0) support CNVi
– 1* M.2 M-key 2242/2280 (SATA/PCIex4) support NVMe
– 1* GPIO (8 bit)
– 1* Chassis intrusion
– 1* Audio Header
– 1* SMBUS
– 1* AT mode
– Support onboard TPM2.0 (option)
 Watchdog Timer
 Watchdog Timer – From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)
 Power
 Power ATX PWR (4+24 pin), AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
 Compliance
 Certifications – CE, FCC, LVD, RoHS, REACH
 Environment
 Temperature – Operating: 0°C ~ 60°C
– Storage: -20°C ~ 85°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
