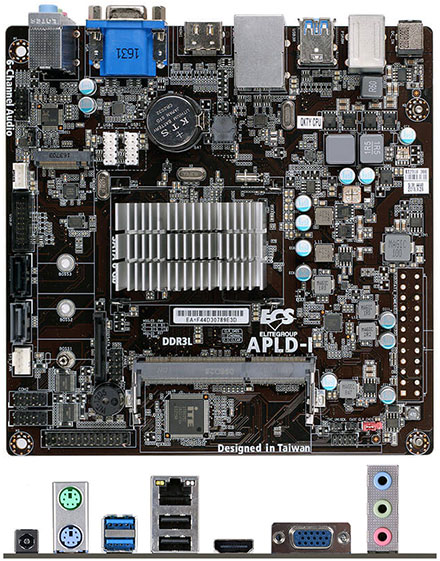

ECS APLD-I Mini-ITX (Intel Apollo Lake J3355, HDMI/DP, ATX) [FANLESS]

PRODUCT IS CURRENTLY NOT AVAILABLE !

ECS APLD-I Mini-ITX (Intel Apollo Lake J3355, HDMI/DP, ATX) [<b>FANLESS</b>]

Applied 100% Solid capacitor design to maximize component reliability
ECS Durathon Technology ensure the stability, reliability and performance of system.
ESD Protection prevents computers from electrostatic discharge damage to enhance its durability and lifespan
ECS MIB III - A friendly interface for overclocking
Supports DirectX® 12 to enhance graphical performance
Supports Intel® HD Graphics
Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function

RAM :

Supports Intel^® CNVi

CPU	Onboard Intel^® Apollo Lake processors 100% Solid capacitor design
GRAPHICS	Supports DirectX^® 12 Supports HDMI 1.4b & Premium Audio
MEMORY	Single-channelDDR4 Memory architecture Supports DDR3L 1600 non-ECC, Un-buffered SO DIMM Memory 1 X DDR3 SO-DIMM socket Support up to 8 GB
EXPANSION SLOT	1 X M.2 slot for 2242/2260/2280 SSD
Storage	2 X Serial ATAIII 6Gb/s
Audio	6-Channel HD audio CODEC Realtek ALC662 Realtek ALC662 6-channel High Definition audio CODEC Meets performance requirements for Microsoft WLP 3.08 Vista premium and mobile PCs Six channel DAC supports 16/20/24-bit PCM format for 5.1 channel audio solution Emulation of 26 sound environments to enhance gaming experience Voice Cancellation and Key Shifting in Karaoke mode Compatible with Direct Sound 3D™, A3D™, I3DL2
LAN	Realtek 8111H Gigabit Fast Ethernet Controller
USB	4 X USB3.1 Gen1 port(s) up to 5Gb/s (either rear I/O or front header) 6 X USB2.0 port(s) Up to 480 Mb/s [Back Panel 2 port(s), Onboard 4 port(s)]
REAR PANEL I/O	1 X PS/2 Keyboard & PS/2 mouse connectors 1 X Audio port (Line Out/Line In/Mic In) 1 X RJ-45 port 1 X HDMI port(s) 1 X D-Sub (VGA) port(s) 1 X Display port(optional instead of D-SUB (VGA)) 2 X USB3.1 Gen1 port(s) 2 X USB2.0 port(s)
CONNECTORS & HEADERS	1 X 24-pin ATX Power Supply connector 1 X SATA Power Connector 1 X 4-pin SYS_FAN connector 1 X Front Panel switch/LED header 1 X Front panel audio header 1 X Speaker header 1 X USB 3.1 Gen1 header (Support additional 2 USB ports) 2 X USB 2.0 header (Support additional 4 USB ports) 1 X CLR_CMOS header 2 X Serial port header (COM) 1 X Parallel port header (LPT) 1 X ME_UNLOCK header 1 X Chassis intrusion header
SYSTEM BIOS	AMI BIOS with 128 MB SPI Flash ROM Supports M.I.B III Utility F7 hot key for boot up devices option Dual Display Support GUI UEFI BIOS Multi-Language BIOS
FORM FACTOR	Mini ITX Form Factor 170*170
OS Support	Windows 10 64-bit
Certifications	CE/FCC Certification ErP/EuP Certification WHQL Certification

Data sheet	Download (PDF)
Data sheet	Print view
ECS Elitegroup Catalog	Download (PDF)
